Advansor

Valuepack

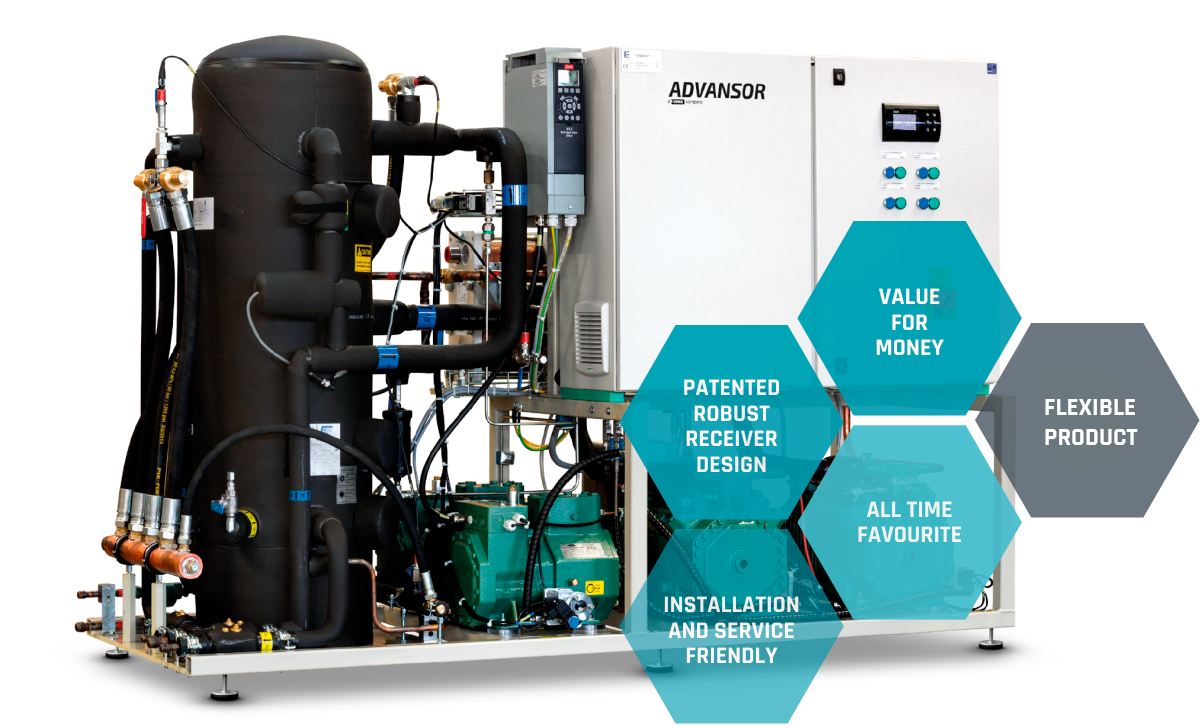

Valuepack_HERO_2
Product information

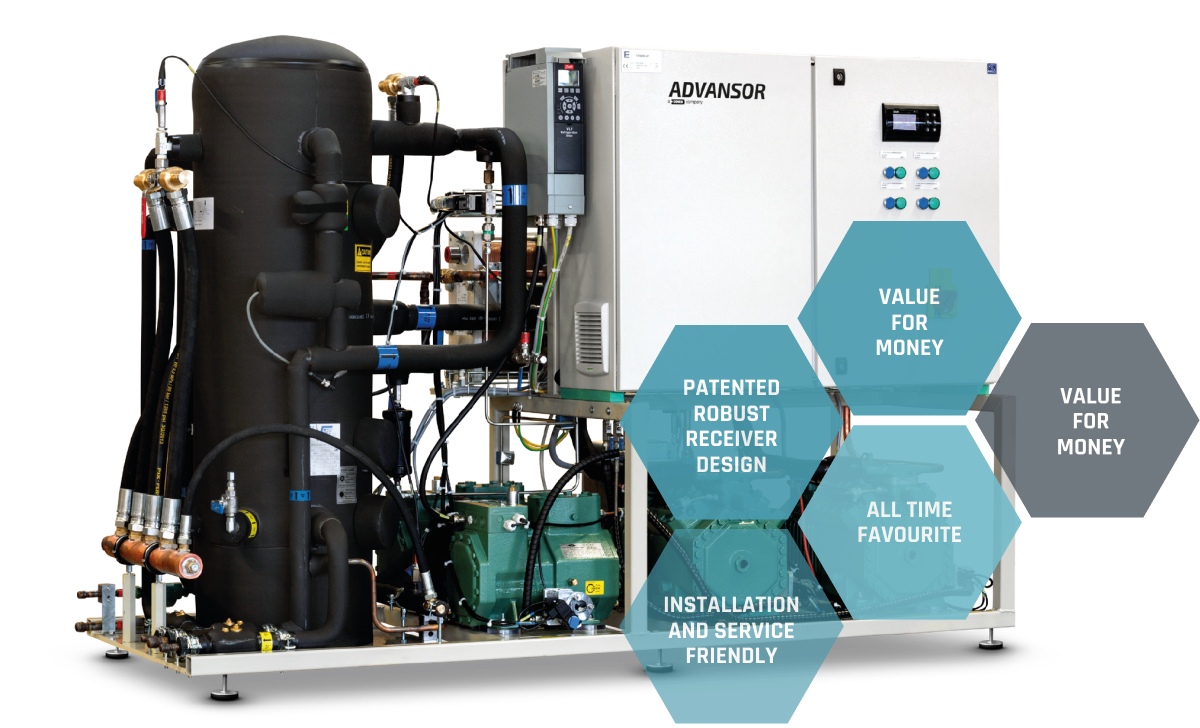

Customers’ all-time favourite. Simple and compact designed, yet very easy to service. Suits every medium-size supermarket or industrial applications with a wide range of options.
The design is optimized with compressors in only one layer, the electrical panel above and the receiver left to the compressors. Combined with the use of K65 piping, this leads to a very simple and compact design.

Frame Size 2x2 & Frame size 3x2

Max No. of MT (IT) Compressors

2 I 3 (Max 1 IT)

Max No. of LT Compressors

2 I 2

Max Capacity MT [kW]*

60 I 96

Max Capacity LT [kW]*

25 I 25

Receiver Volume [L]

80/130 I 80/130

Height [mm]

1,400/1,900 I 1,400/1,900

Length [mm]

2,040 I 2440

Width [mm]

790 I 790

Approx. Weight [kg]

1,000 I 1350

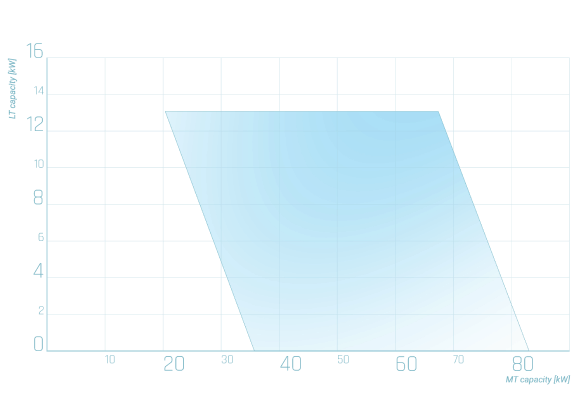

Valuepack_graph-1
Frame Extended 3x2

Max No. of MT (IT) Compressors

3 (Max 1 IT)

Max No. of LT Compressors

3

Max Capacity MT [kW]*

96

Max Capacity LT [kW]*

25

Receiver Volume [L]

80/130

Height [mm]

2,840

Length (MM)

2,840

Width [mm]

790

Approx. Weight [kg]

1,550

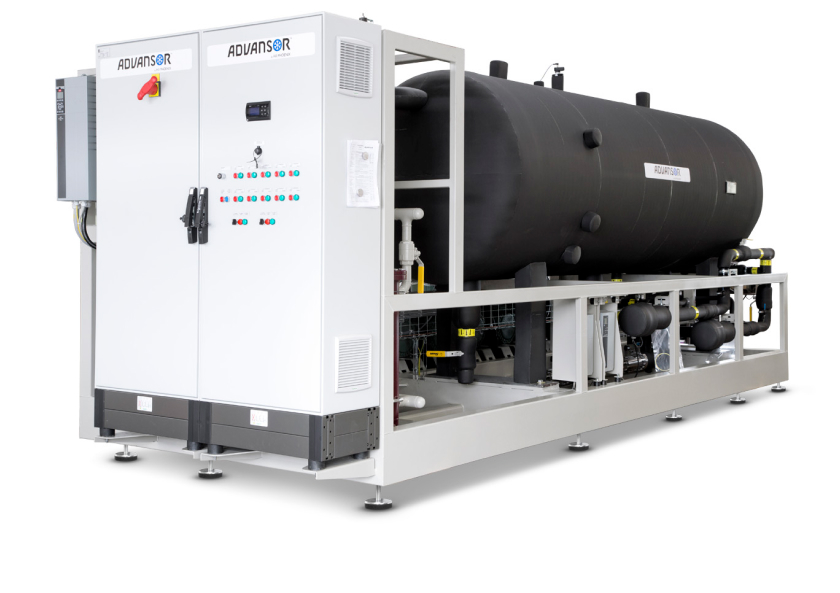

compindustri-xl-elskab

 *All capacities are calculated at -8°C MT, -30°C LT and 35°C out of the gas cooler

  • STANDARD EQUIPMENT
  • Frequency Inverter on MT1
    Patented Receiver Design with Integrated Coil
    and Suction Accumulator
    Filter Drier
    Muffler and Oil Separator
  • CONTROLLERS AVAILABLE
  • Danfoss
    Carel
    Wurm
    Eckelmann
  • STANDARD DESIGN PRESSURES
  • High Pressure: 120 bar
    Receiver Pressure: 60 bar
    MT Suction Pressure: 52 bar
    LT Suction Pressure: 30 bar
  • OPTIONS AVAILABLE
  • Advanced Frequency Inverter on LT1
    Discharge Manifold Connected to Safety Valves
    Double Safety Valves on Switchover Valves
    Heat Recovery
    Energy Meter
    Co2
    Low Level Switch
    Enclosure for Outdoor Installation
    60 Bar Suction Side
    Gas Cooler Bypass
    80 Bar Receiver
    Double High Pressure and Gas Bypass Valves
    Insulated Hot Surfaces
    Aircondition
    Parallel Compressions
    LT only
    MT only
    RDM
ISO 9001:2015 certified

Extensive factory tests to ensure fast commission
on both pressure and electrical installations
Documentation and manuals that meet legal
requirements
