Advansor

Tower

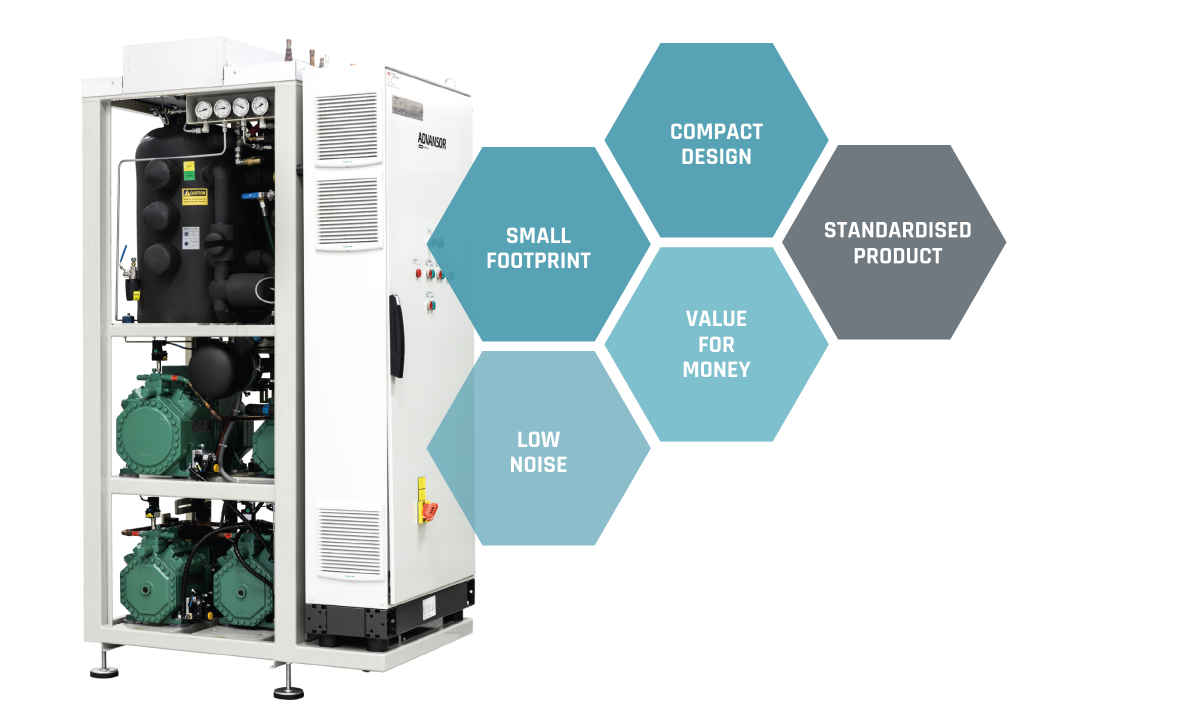

TowerL_HERO
product information

When floor space is limited, the only way is up! Small footprint and high capacity; probably the highest kW capacity pr. m2 of any rack in the world. The rack is constructed as a single unit on a steel frame. This design results in a compact unit that can be installed in places where space is limited. As well as the footprint, there are only minimal setup requirements.

Frame Size 3x1 & frame size 2x2

Max No. of MT (IT) Compressors

3 | 2

Max No. of LT Compressors

1 | 2

Max Capacity MT [kW]*

82 | 42

Max Capacity LT [kW]*

14 | 16

Receiver Volume [L]

70 | 70

Height [mm]

2,224 | 2,224

Length [mm]

1,200 | 1,200

Width [mm]

800 | 800

Approx. Weight [kg]

1,600 | 1,600

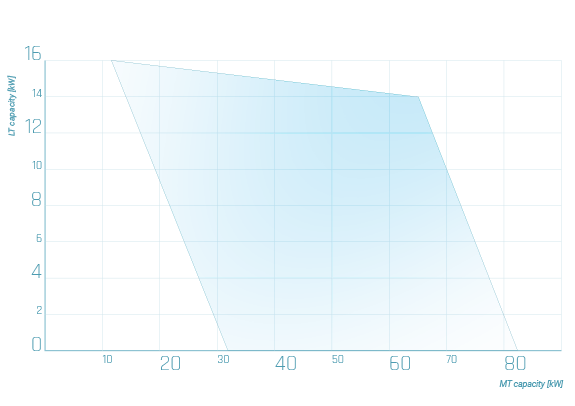

Tower_graph

*All capacities are calculated at -8°C MT, -30°C LT and 35°C out of the gas cooler

  • STANDARD EQUIPMENT
  • Patented Internal Heat Exchanger in Reciever
    Frequency Inverter on MT1
  • CONTROLLERS AVAILABLE
  • Wurm
    Danfoss
  • STANDARD DESIGN PRESSURES
  • High Pressure: 120 bar
    Receiver Pressure: 60 bar
    MT Suction Pressure: 52 (45) bar
    LT Suction Pressure: 30 bar
  • OPTIONS AVAILABLE
  • Frequency Inverter on LT1
    Discharge Manifold Connected to Safety Valves
    Energy Meter
    CO2
    Low Level Switch
    Standard Enclosure for Low Noise
    Enclosure for Low Noise and Outdoor Installation
    MT only
ISO 9001:2015 certified

Extensive factory tests to ensure fast commission
on both pressure and electrical installations. Documentation and manuals that meet legal requirements
