Product information

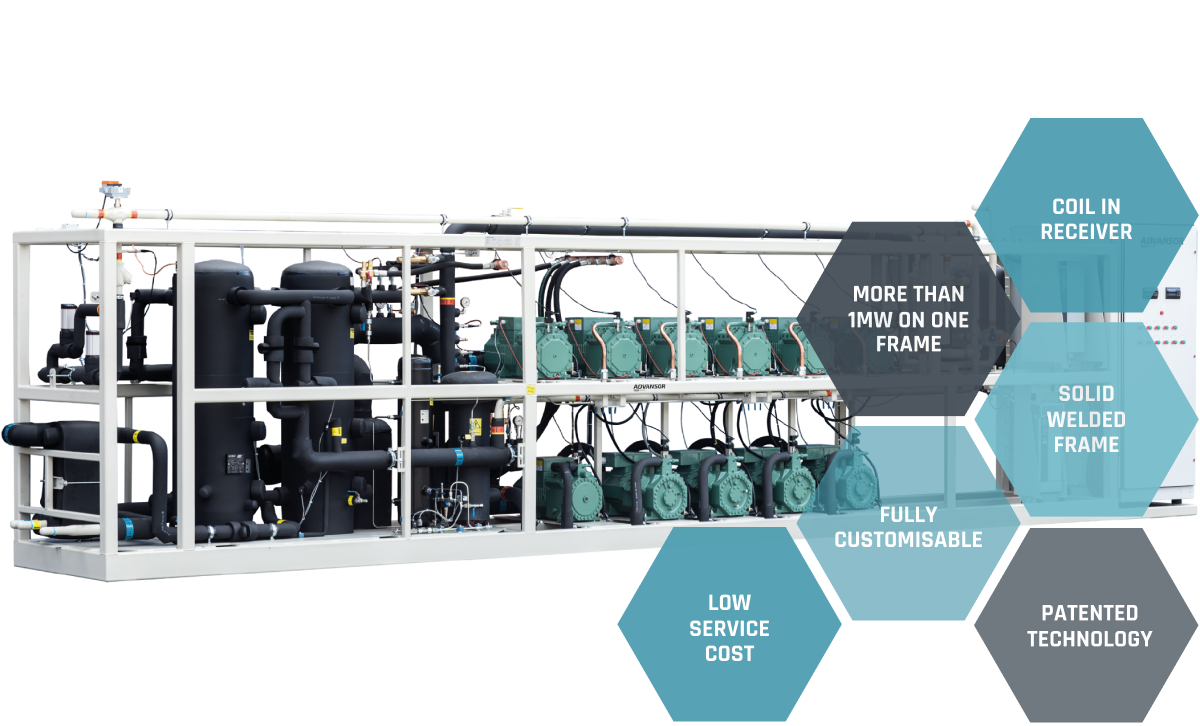

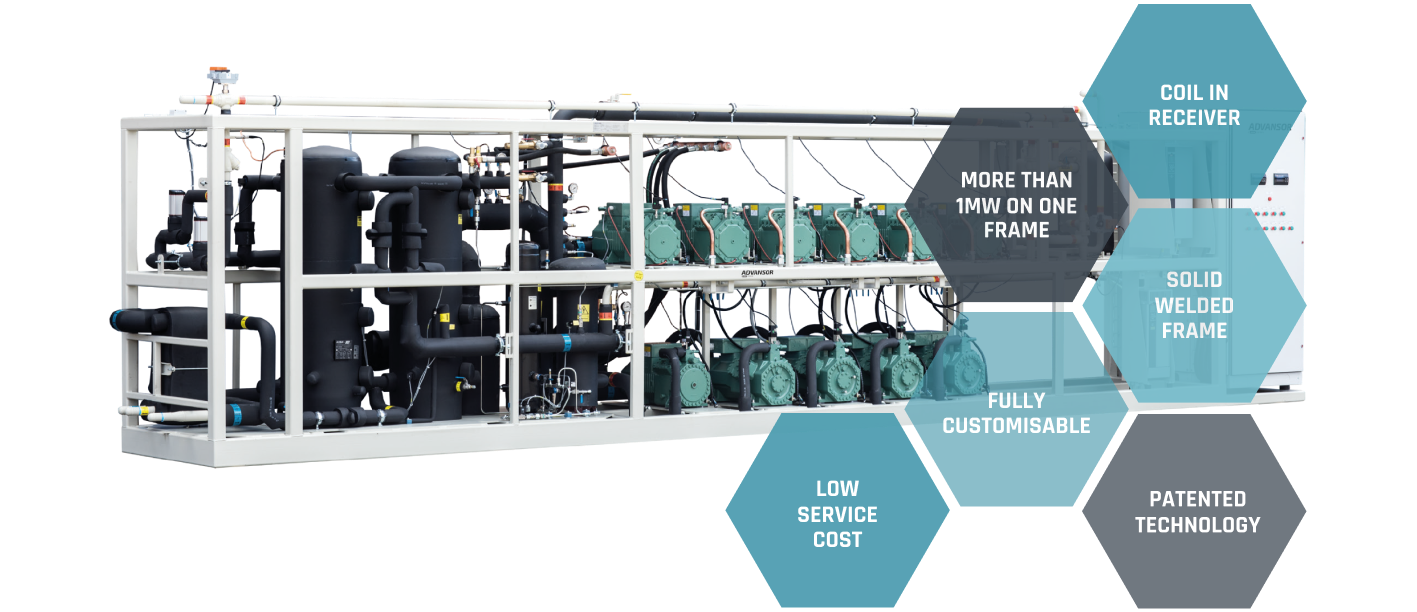

Big is beautiful! This is the Tyrannosaurus Rex of all CO2 designs. It fulfils all refrigeration system designs:  pumped, de-coupled with chiller module and DX. It is highly customisable providing new possibilities for optimizing stores and industry facilities in completely new ways.

Frame Size 2x1

MT (IT) Compressors

5-10 (15 MT-Only)

LT Compressors

1-9

Receiver Volume [L]

170-1,395

Electrical Connection

3x400V (TN-S system)

Height [mm]

2,300

Width [mm]

1,200

Length [mm]

6,000-10,000

Weight [kg]

4,000-8,000

SteelXL_Graph-1

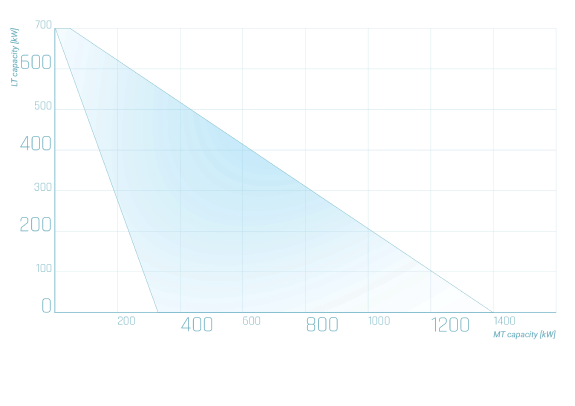

*ALL CAPACITIES ARE CALCULATED AT -8°C MT, -30°C LT AND 35°C OUT OF THE GAS COOLER
  • STANDARD EQUIPMENT
  • LT Suction Accumulator
    Patented Internal Heat Exchanger in Receiver
    Hot Gas Dump
    Liquid Injection
    Filter Drier
    CO2
    Low Level Switch
    Discharge Manifold Connected to Safety Valves
    Frequency Inverter on MT1
  • CONTROLLERS AVAILABLE
  • Danfoss
    Wurm
    Carel
    RDM
    Eckelmann
  • STANDARD DESIGN PRESSURES
  • High Pressure: 120 bar
    Receiver Pressure: 60 bar
    MT Suction Pressure: 52 bar
    LT Suction Pressure: 30 bar
  • OPTIONS AVAILABLE
  • Advanced Heat Recovery
    Permanent Magnet Motors
    Ejector Technology
    Enclosure for Low Noise and Outdoor Installation
    CO2
    Liquid Level Measurement
    Gas Cooler Bypass
    Double High Pressure and Gas Bypass Valve
    Back-up Controller
    Receiver Emergency Cooler
    Double Safety Valves on Switchover Valves
    MT Suction Accumulator
    60 Bar Suction Side
    Energy Meter
    Heat Pump Evaporator Function
    Multiple Suction Groups
    Subcooler
    Liquid Subcooler
    Hot Gas Defrost
    Insulated Hot Surfaces
    Chiller Module
    Pump Module
    130 Bar High Pressure
ISO 9001:2015 certified

Extensive factory tests to ensure fast commission on both pressure and electrical installations. Documentation and manuals that meet legal requirements
