Steelx

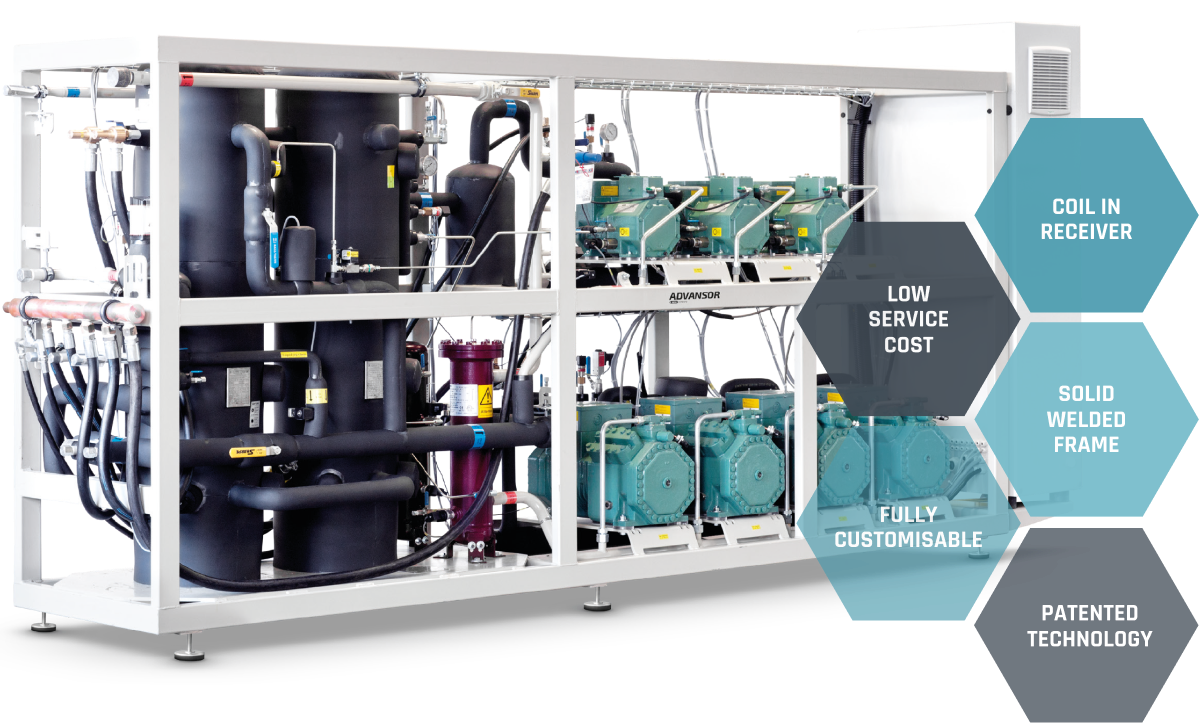

Steelx_HERO
product information

The original innovative Advansor design from which all other designs evolved. A robust, ultrahigh quality refrigeration system with the most elaborate scope of options and energy saving features. Fully customisable to meet demands of supermarket as well as industrial applications.

Frame Size 2x1

MT (IT) Compressors

2-6

LT Compressors

1-5

Receiver Volume [L]

130-340

Electrical Connection

3x400V (TN-S system)

Height [mm]

2,200

Width [mm]

800

Length [mm]

4,000-7,500

Weight [kg]

2,000-4,000

Steelx_Graph

*All capacities are calculated at -8°C MT, -30°C LT and 35°C out of the gas cooler

  • STANDARD EQUIPMENT
  • LT Suction Accumulator
  • Patented Internal Heat Exchanger in Receiver
  • Hot Gas Dump
  • Liquid Injection
  • Filter Drier
  • CO2
  • Low Level Switch
  • Discharge Manifold Connected to Safety Valves
  • Frequency Inverter on MT1
  • CONTROLLERS AVAILABLE
  • Danfoss
    Wurm
    Carel
    RDM
    Eckelmann
  • STANDARD DESIGN PRESSURES
  • High Pressure: 120 bar
    Receiver Pressure: 80 bar
    MT Suction Pressure: 52 bar
    LT Suction Pressure: 30 barr
  • OPTIONS AVAILABLE
  • Advanced Heat Recovery
    Permanent Magnet Motors
    Ejector Technology
    Enclosure for Low Noise and Outdoor Installation
    CO2
    Liquid Level Measurement
    Gas Cooler Bypass
    Double High Pressure and Gas Bypass Valves
    Back-up Controller
    Receiver Emergency Cooler
    Double Safety Valves on Switchover Valves
    MT Suction Accumulator
    60 Bar Suction Side
    Energy Meter
    Heat Pump Evaporator Function
    Multiple Suction Groups
    Subcooler
    Liquid Subcooler
    Hot Gas Defrost
    Insulated Hot Surfaces
    Chiller Module
    Pump Module
    130 Bar High Pressure
ISO 9001:2015 certified

Extensive factory tests to ensure fast commission
on both pressure and electrical installations
Documentation and manuals that meet legal
requirements.
