CUBIG

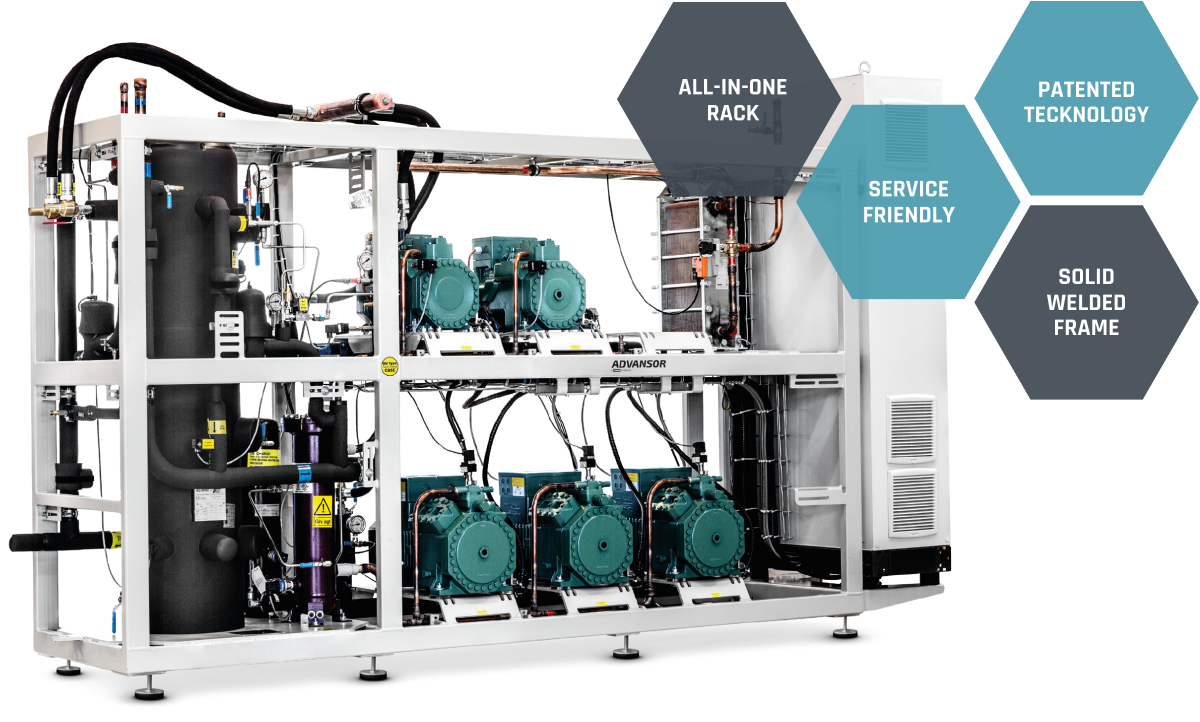

CUBIG_HERO-1
product information

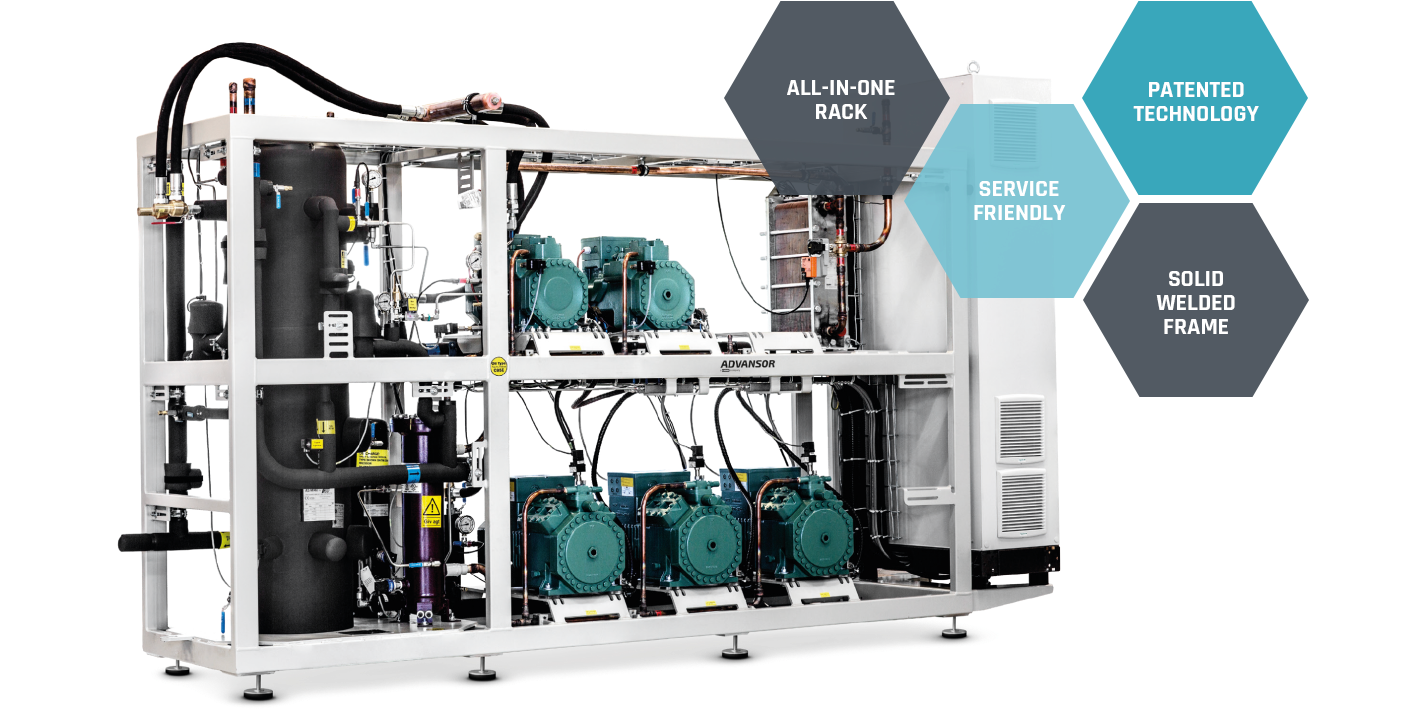

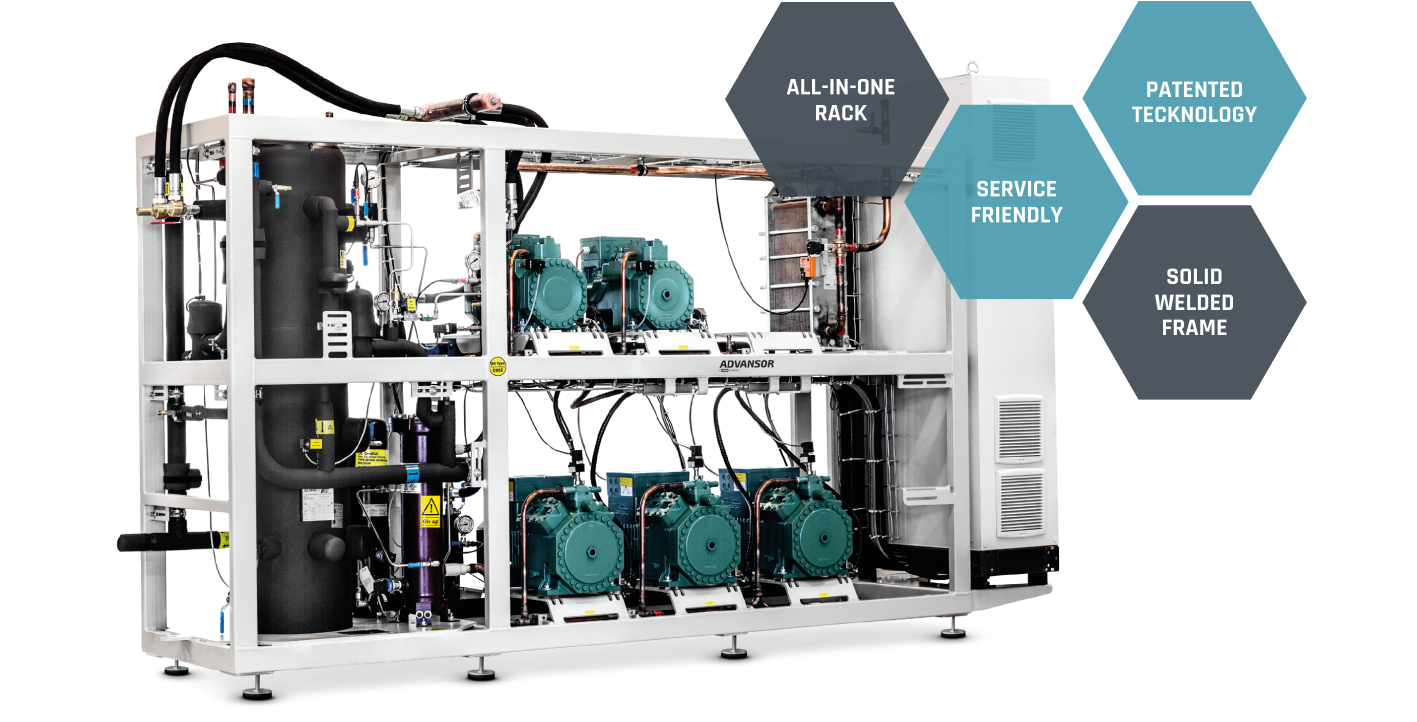

A flexible hybrid with the perfect balance between power and value. Copper piping gives the same features and reliability of the steel products in a lighter format - which makes it easier for the installer to change parts in the rack.

Frame Size 3x3 I 4X4

Max No. of MT (IT) Compressors

3 (max 1 IT ) I 4MAX 1 IT)

Max No. of LT Compressors

3 I 4

Max Capacity MT [kW]*

170 I 170

Max Capacity LT [kW]*

115 I 115

Receiver Volume [L]

130/170 I 130/170

Height [mm]

2,200 I 2,000

Length [mm] (excl. Switchboard)

3,000 I 3,500

Width [mm]

800 I 800

Approx. Weight [kg]

2,000 I 2,500

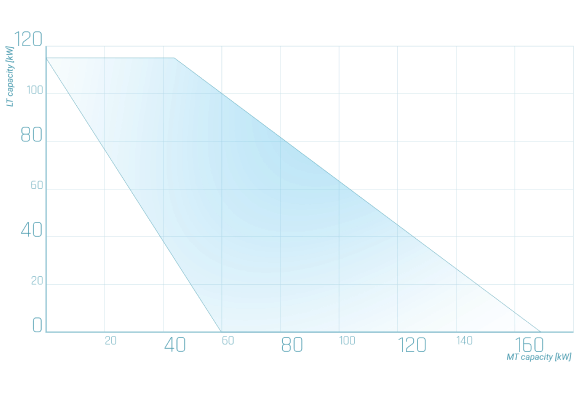

Cubig_Graph

*All capacities are calculated at -8°C MT, -30°C LT and 35°C out of the gas cooler



  • STANDARD EQUIPMENT
  • Patented Internal Heat Exchanger in Receiver
  • Hot Gas Dump
  • Liquid Injection
  • Filter Drier
  • CO2
  • Low Level Switch
  • Discharge Manifold Connected to Safety Valves
  • Frequency Inverter on MT1 and IT1
  • CONTROLLERS AVAILABLE
  • Danfoss
    Wurm
    Carel
    RDM
    Eckelmann
  • STANDARD DESIGN PRESSURES
  • High Pressure: 120 bar
  • Receiver Pressure: 80 bar
    MT Suction Pressure: 52 bar
    LT Suction Pressure: 30 bar
  • OPTIONS AVAILABLE
  • Advanced Heat Recovery
  • Gas Cooler Bypass
    Heat Pump Evaporator Function
    Parallel Compression
    Ejector Technology
    Aircondition
    Enclosure for Low Noise and Outdoor Installation
    Receiver Emergency Cooler
    60 Bar Suction Side
    Double Safety Valves on Switchover Valves
    Liquid Subcooler
    Chiller Module
    Double High Pressure- and Gas Bypass Valves
    Back-up Controllers
    CO2
    Liquid Level Measurement
    Energy Meter
    Insulated Hot Surfaces
ISO 9001:2015 certified

Extensive factory tests to ensure fast commission on both
pressure and electrical installations
Documentation and manuals that meet legal requirements
